Description
SIMPLE PROFESSIONAL RECORDING ON MAC, PC AND IPAD

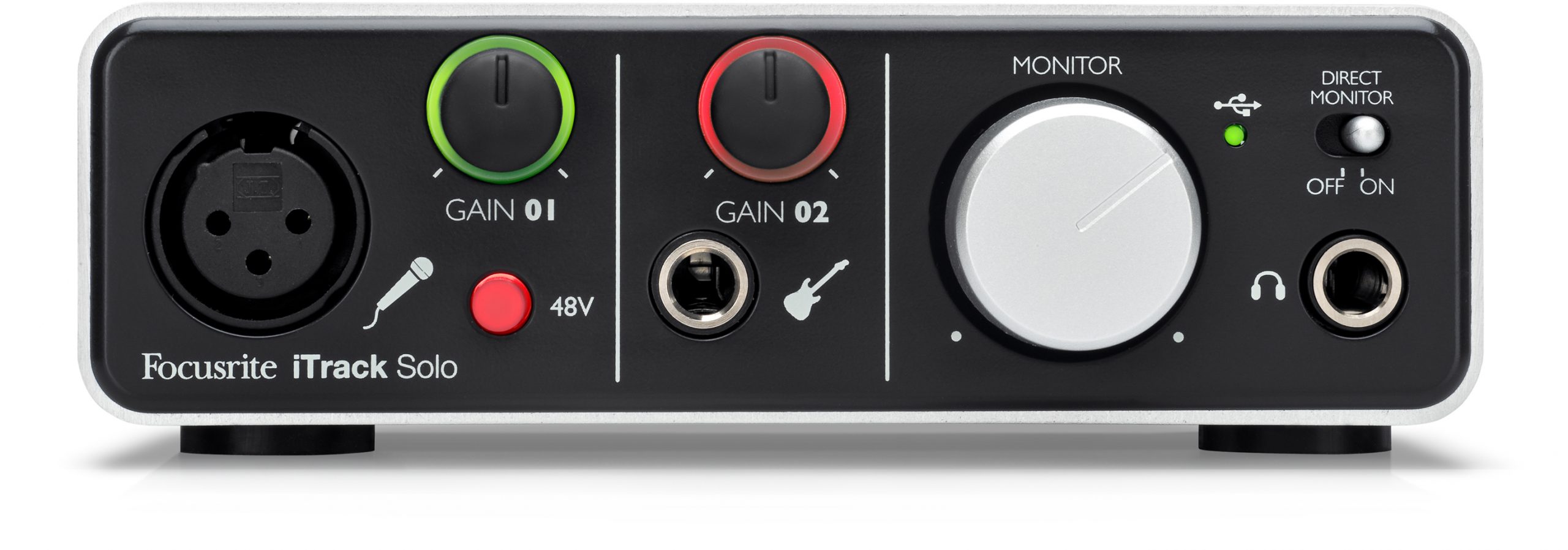

TECHNICAL SPECIFICATIONS FRONT PANEL
1 microphone input – XLR
1 Instrument input ¼’ unbalanced
2 Gain knobs
2 Gain halo signal indicators
48V Phantom power switch
Direct monitor switch
Large monitor level dial (controls headphone and line level outputs)
USB Connection LED indicator
Headphone output ¼’ TRS Jack

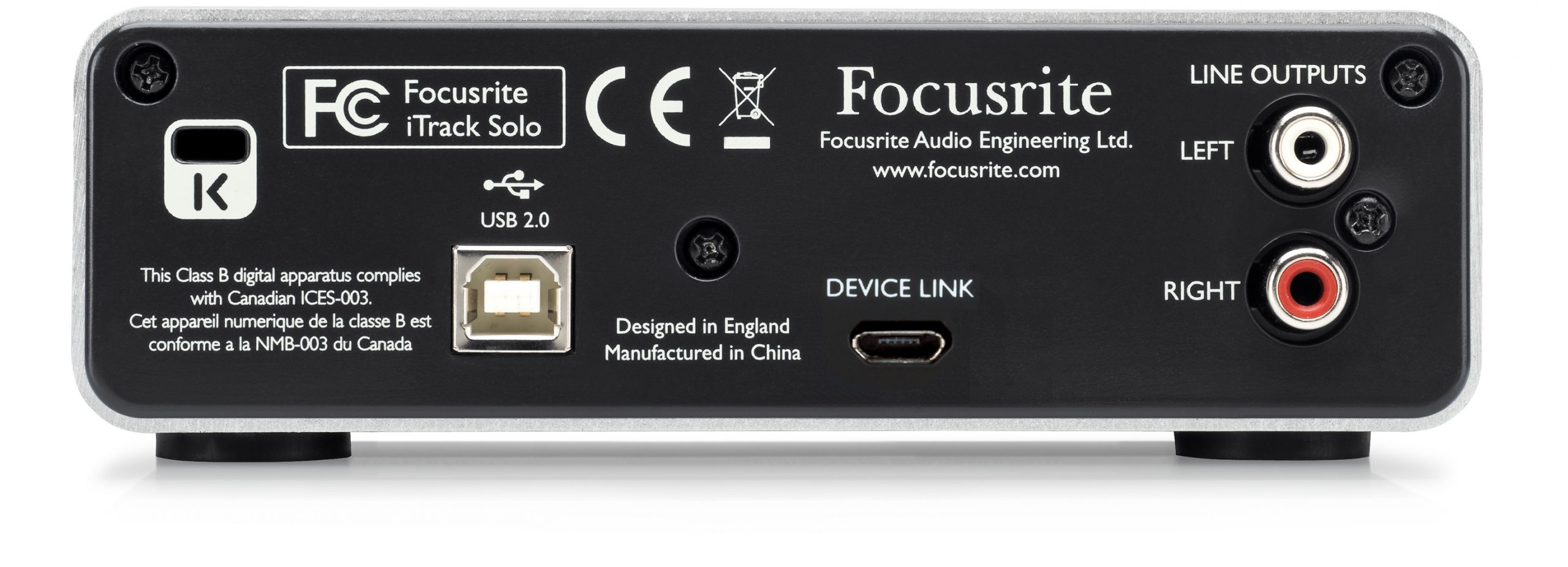

REAR PANEL
2 unbalanced monitor outputs – RCA Phono
DEVICE LINK port (to connect iTrack Solo to iPad)
USB 2.0 Port
Kensington Lock slot
INCLUDED SOFTWARE
Ableton Live Lite 9 – professional music making software to use your iTrack Solo with a Mac or PC.
Focusrite Scarlett plug-in suite – collection of software plug-ins bringing effects to your music software (like Ableton Live for example).
MIC ANALOGUE INPUT PERFORMANCE Frequency Response20Hz – 20kHz +/- 0.2 dB THD+N< 0.002% (minimum gain, -1dBFS input with 22Hz/22kHz bandpass filter) Equivalent Input Noise (EIN)< -120dB: measured at minimum gain with, -1 dBFS (20Hz/22kHz bandpass filter) Gain Range+10dB to +55dB Max Input Level+4dBu
INSTRUMENT Frequency Response20Hz – 20kHz +/- 0.2dB THD+N0.003% (measured with -1dBFS input and 22Hz/22kHz bandpass filter) Noise-87dBu (22Hz/22kHz bandpass filter) Gain Range-10dB to +55dB Max Input Level+2dBu
ANALOGUE OUTPUT PERFORMANCE Nominal Output Level0dBFS = 10dBu, unbalanced Frequency Response20Hz – 20kHz +/- 0.2dB THD+N< 0.001% (measured with 0dBFS input 22Hz/22kHz bandpass filter, un-weighted)
DIGITAL PERFORMANCE Clock sourcesInternal clock only A-D Dynamic Range105dB ‘A-weighted’ (all inputs). Converter chipset A-D dynamic range 114dB D-A Dynamic Range105dB ‘A-weighted’ (all outputs). Converter chipset D-A dynamic range 114dB Supported sample rates44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz – Mac and PC
44.1 KHz, 48 KHz – iPad
CROSSTALK Input to InputBetter than 90dB Output to OutputBetter than 90dB Input to OutputBetter than 85dB
INPUT METERING
Ring LED lit Green Signal present (-24 dBFS)
Ring LED lit Red Signal overload (0dBFS), peak held for approximately 1 second
WEIGHT AND DIMENSIONS
Height 45 mm / 1.77′
Width 150 mm / 6′
Depth 100 mm / 4′
Weight 500 g / 1 lb
IN THE BOX
iTrack Solo
1.2m USB cable
1.2m “DEVICE LINK” cable (to connect to a Lightning iPad)
Getting started guide
Registration card
Download card for Ableton Live Lite / Scarlett Plug-in Suite
USB power supply (US only)
COMPATIBLE IPADS
iTrack Solo Lightning: Any iPad with Lightning connector.
Standard iTrack Solo: iPad (1st gen), iPad (2nd gen) and iPad (3rd gen)
