Celebration of Tone

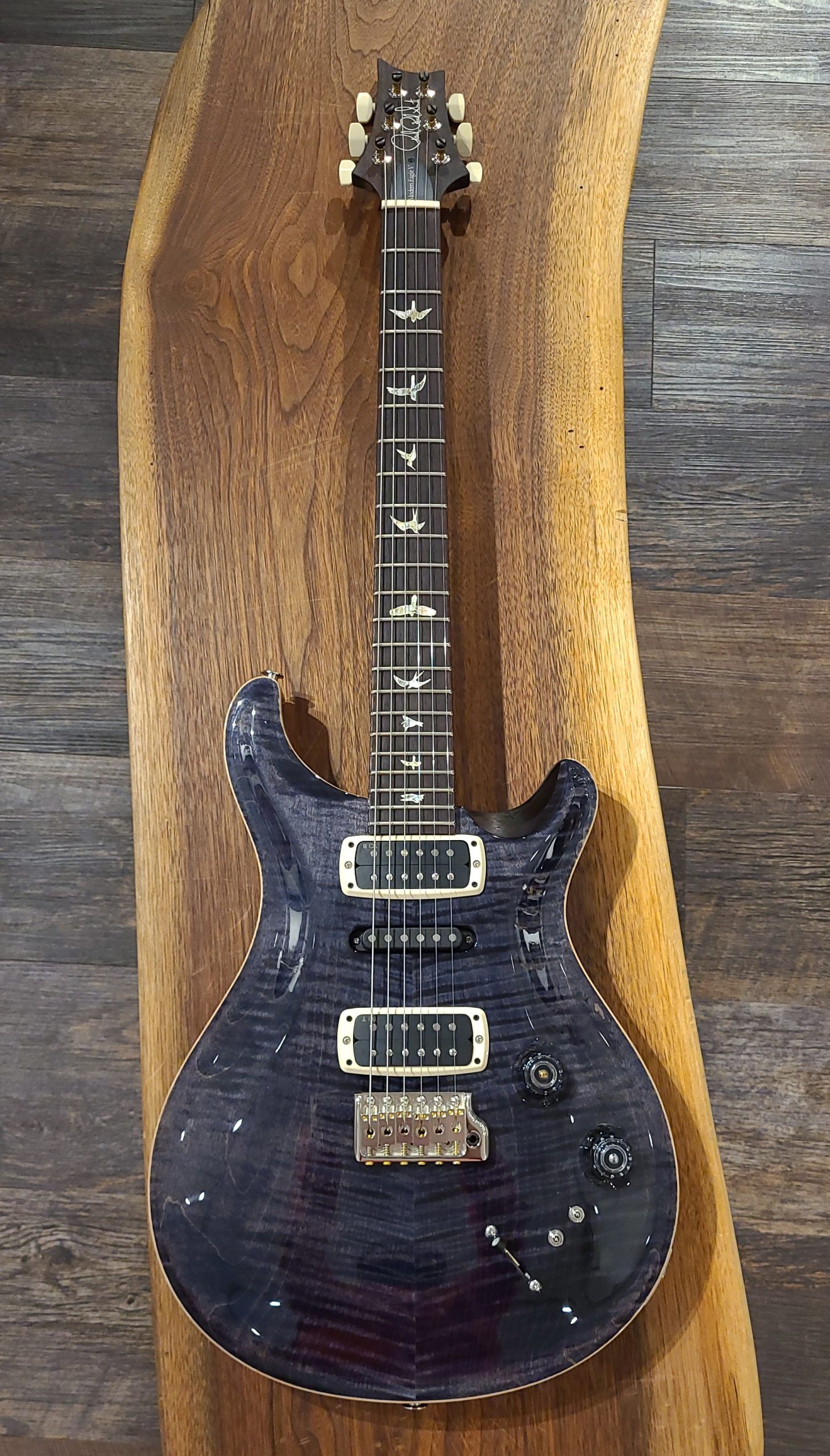

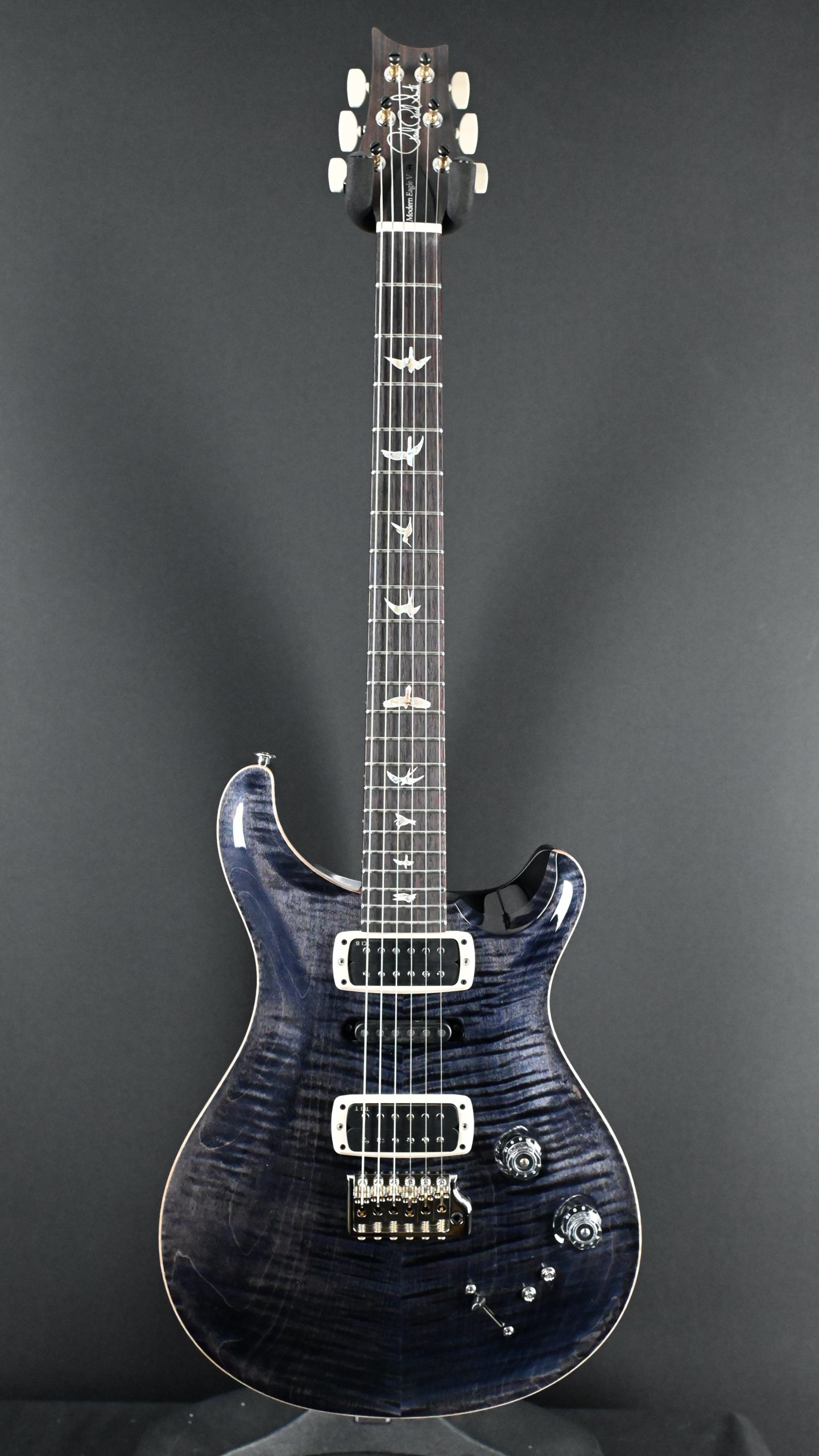

The Modern Eagle V offers highly musical tones for both recording and playing live. A mix of classic and modern, the Modern Eagle V is built on a tried-and-true foundation of a maple top and mahogany back, a 22 fret, 25” scale length, Pattern mahogany neck with rosewood fretboard, bone nut, PRS Phase III Tuners, and the PRS patented Gen III tremolo. Its innovative pickup and electronics configuration puts a while range of tones at your fingertips.

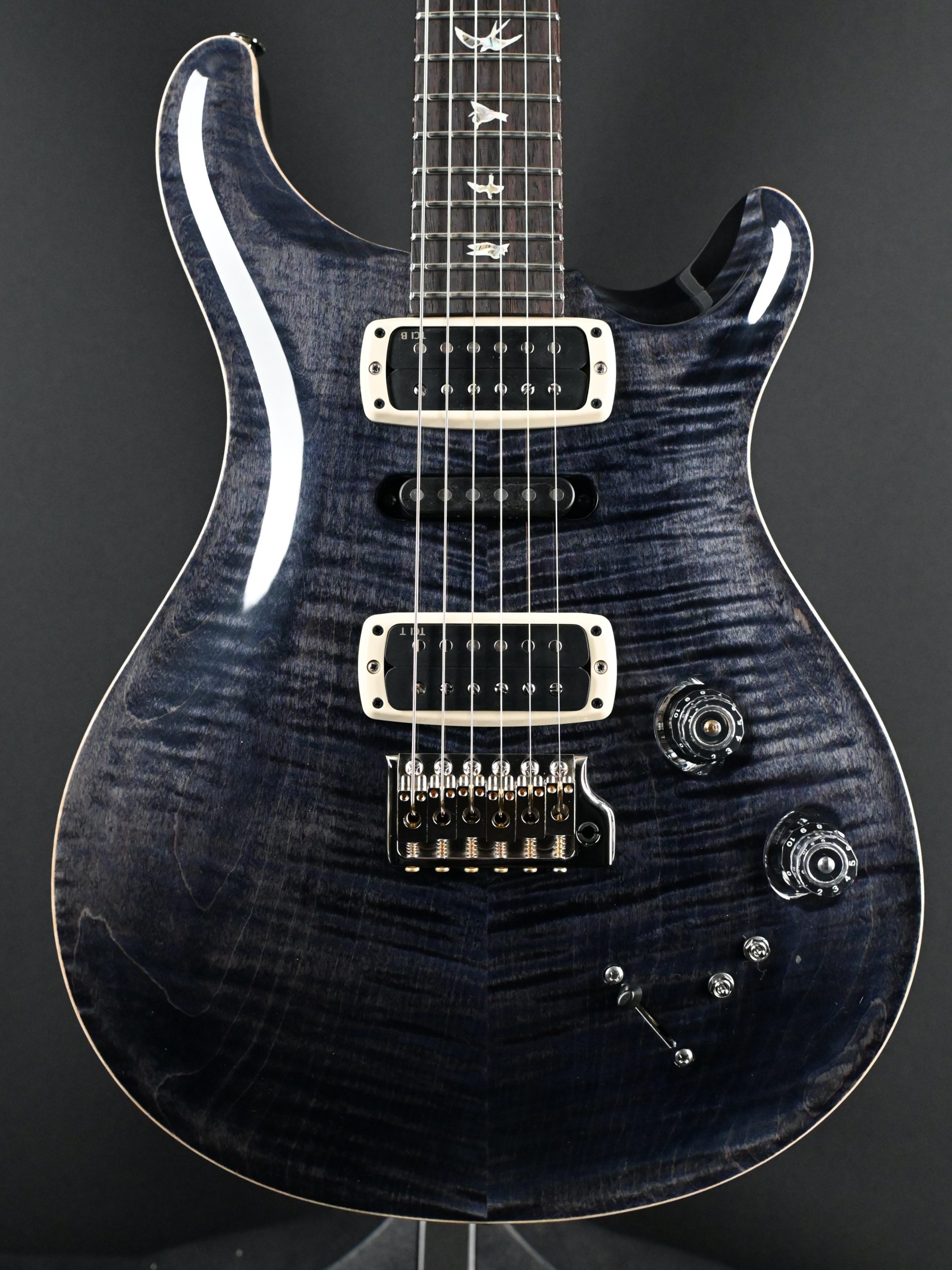

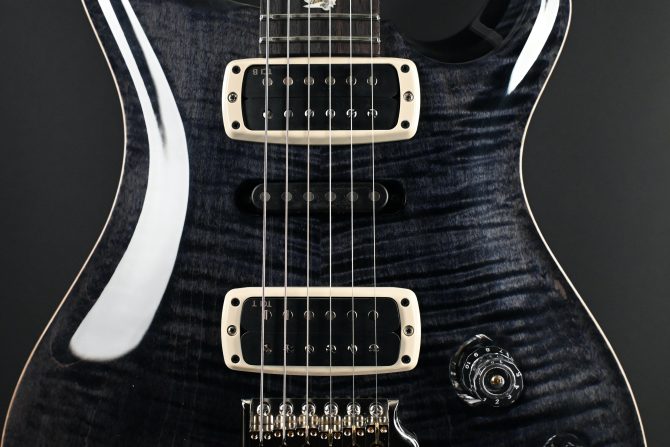

Utilizing a hum/single/hum (five-coil) pickup layout and unique electronics configuration, the Modern Eagle V gives players a vast array of tones in one guitar. The 5-way blade switch selects the pickups in intuitive groupings: treble, treble and middle, middle, middle and bass, and bass. There is a single volume and a push/pull tone control that activates both humbuckers when engaged; this allows players to access all three pickups simultaneously. Finally, the dual EQ mini-toggle switches act as tuned high-pass filters when engaged (in the up position), removing shelved low-end and allowing the high frequencies through for more clarity and musical highs.
PRS Patented Tremolo, Gen III
Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.
PRS Phase III Locking Tuners with Wing Buttons
Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.
PRS MEV Pickups
Versatile pickup configuration offering a vast array of tones in one guitar.
- Stock #374
- 7 lbs 6 oz
- Body
- Body Construction Solidbody
- Top Wood Maple
- Back Wood Mahogany
- Top Carve Violin
- Neck
- Number of Frets 22
- Scale Length 25″

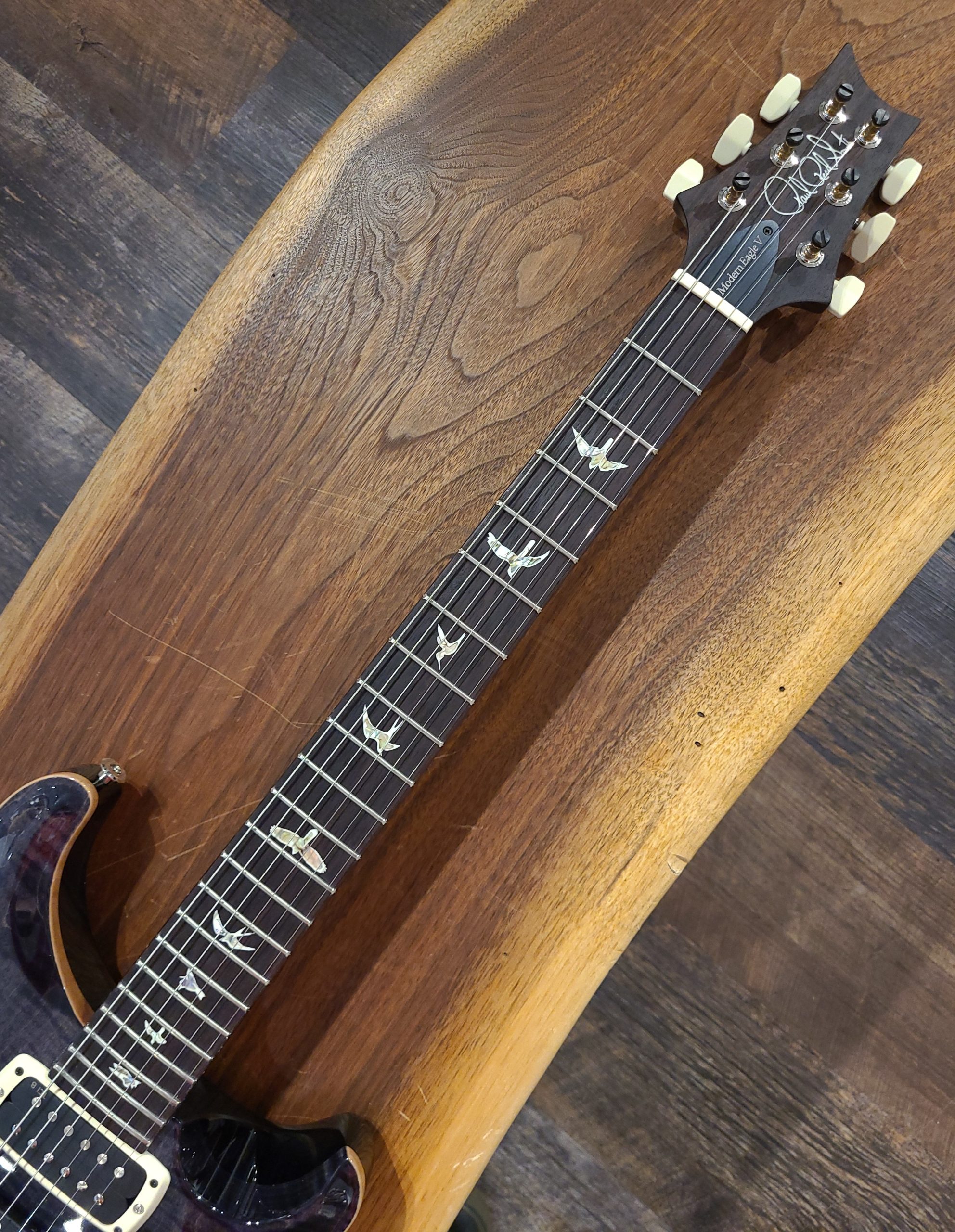

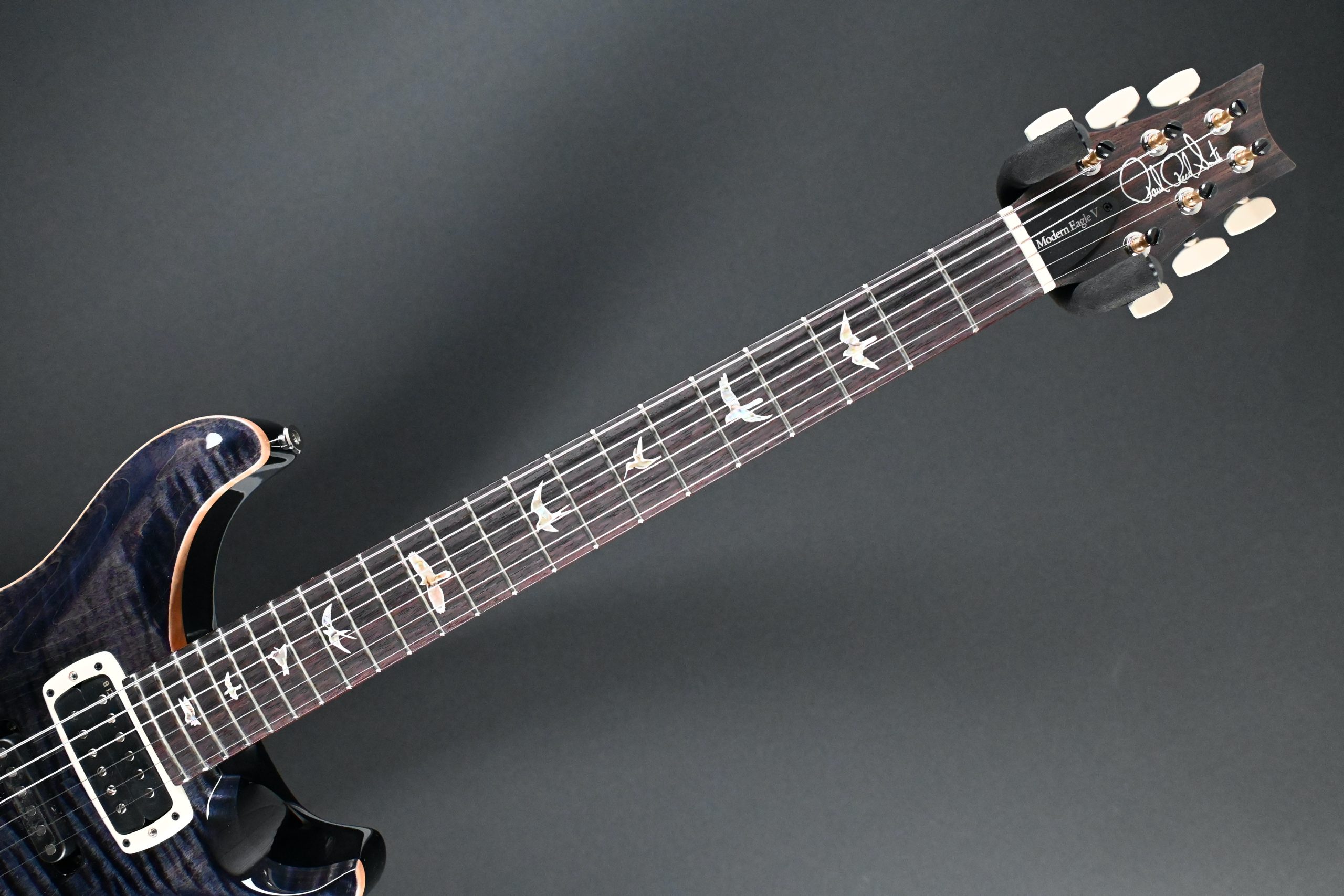

- Neck Wood Mahogany
- Neck Construction One-Piece
- Truss Rod PRS Double-Acting
- Neck Shape Pattern
- Neck Depth at the 1/2 Fret 7/8″
- Neck Depth at the 12 1/2 Fret 61/64″
- Neck Width at the Nut 1 11/16″
- Neck Width at the Body 2 1/4″
- Fretboard Wood Rosewood
- Fretboard Radius 10″

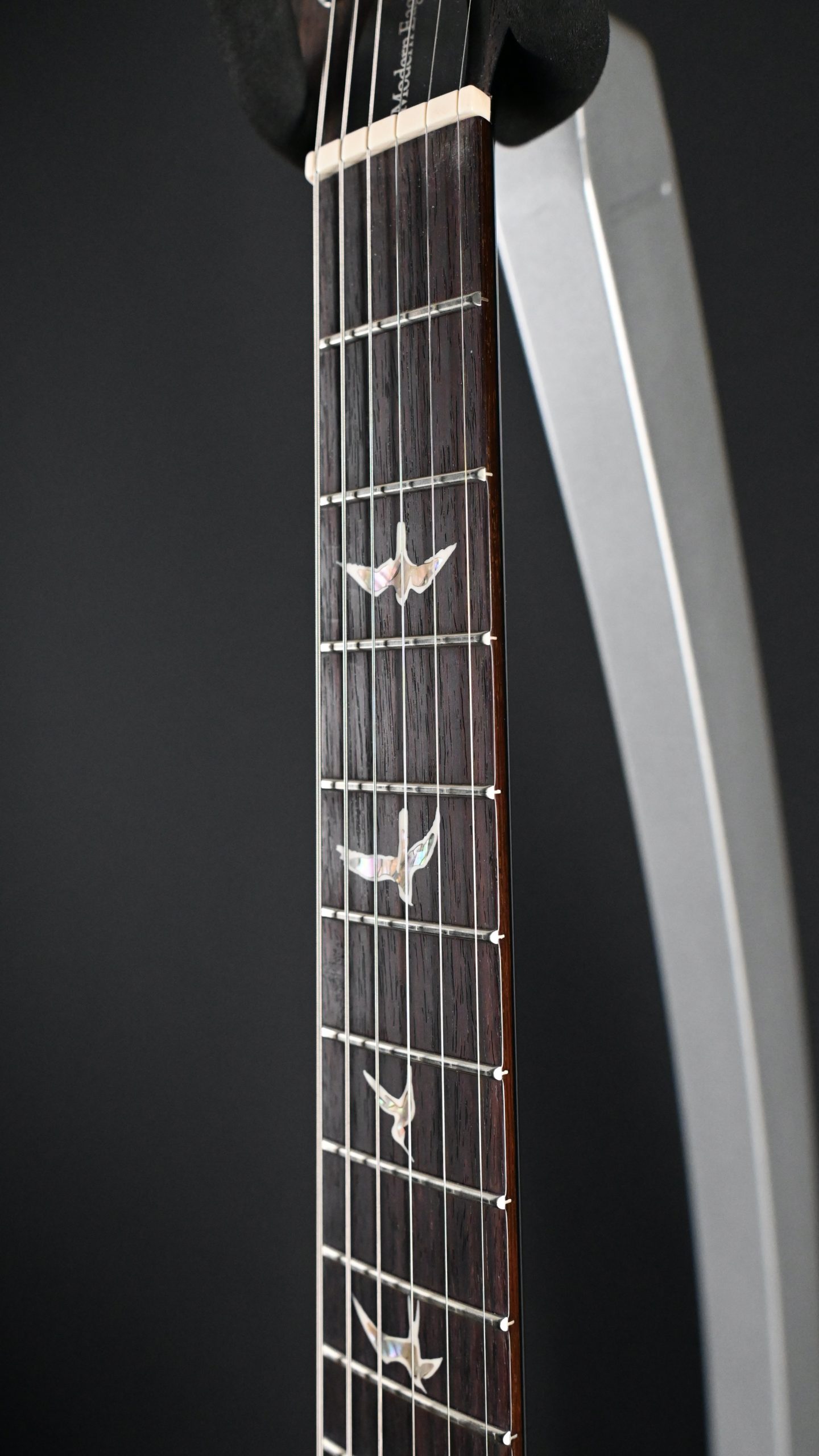

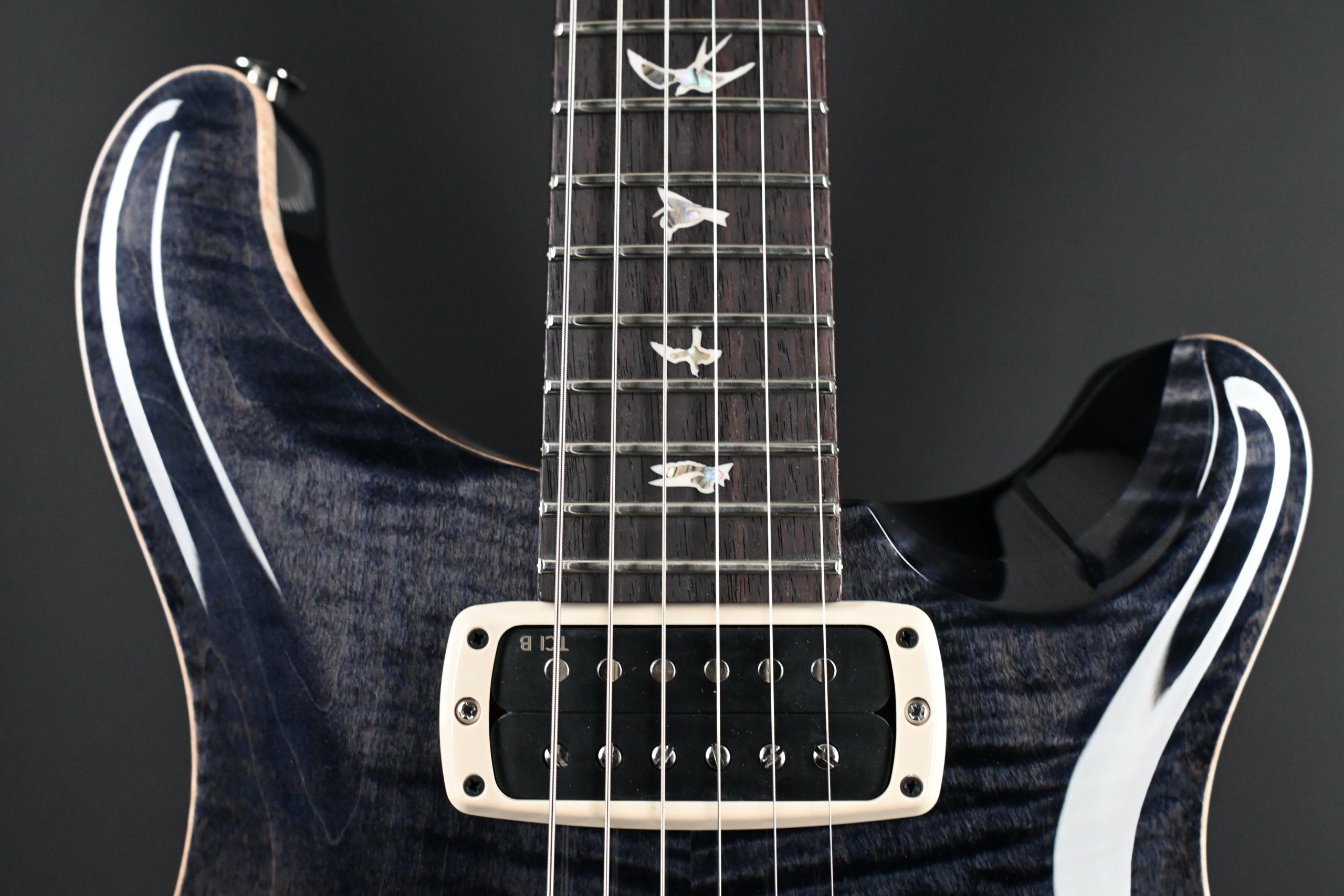

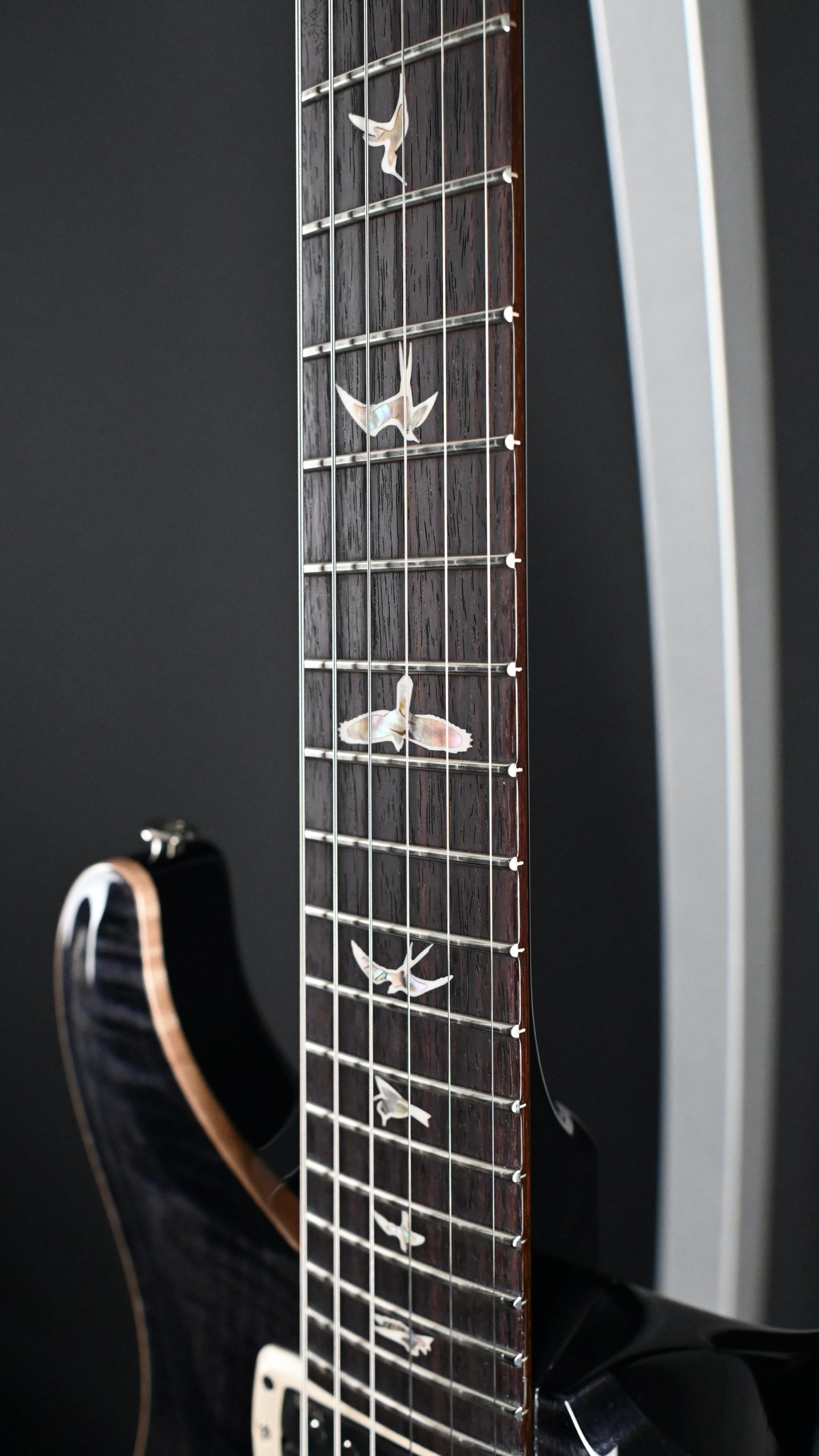

- Fretboard Inlay Birds
- Headstock Logo Signature, Inlaid
- Neck/Body Assembly
- Neck/Body Assembly Type Set
- Finish
- Finish Type High-Gloss Nitro
- Hardware
- Bridge PRS Patented Tremolo, Gen III

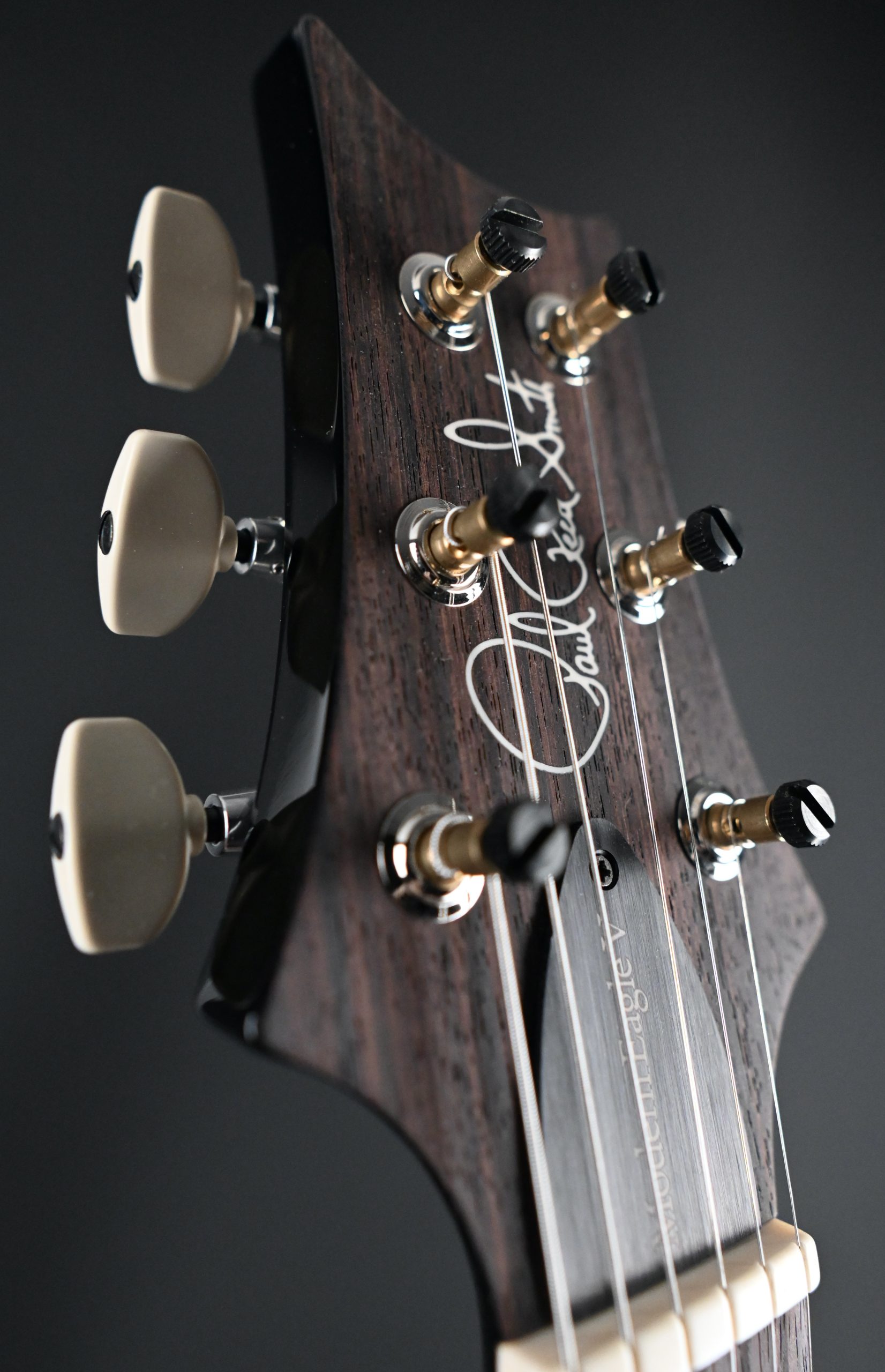

- Tuners PRS Phase III Locking Tuners with Wing Buttons
- Hardware Type Nickel
- Nut Bone
- Truss Rod Cover “Modern Eagle V”
- Electronics
- Treble Pickup TCI
- Middle Pickup NS-01
- Bass Pickup TCI

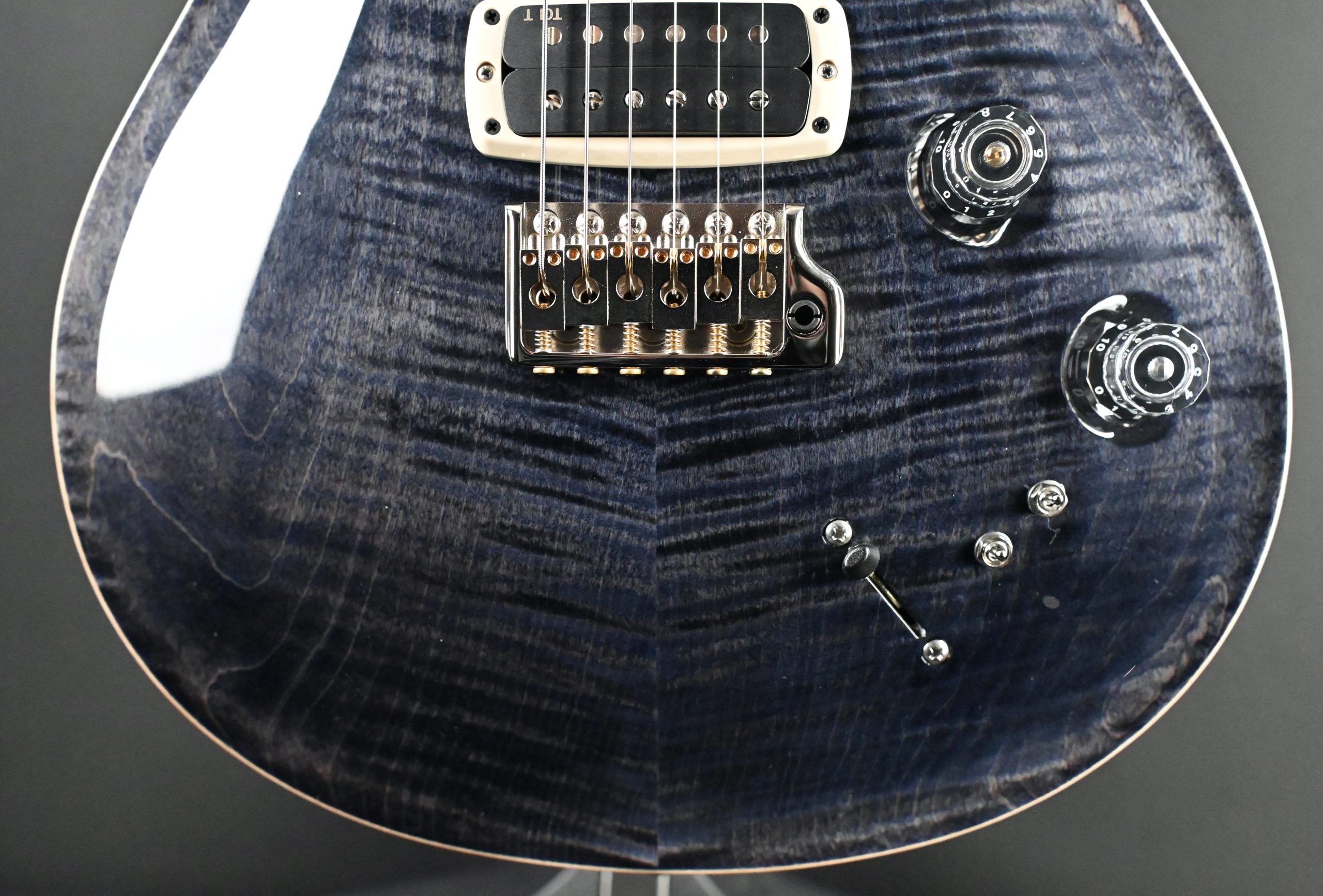

- Controls Volume and Push/Pull Tone Controls with 5-Way Blade Pickup Switch and Two Mini-Toggle EQ Switches
- Additional Info
- Strings PRS Signature 10-46
- Tuning Standard (6 String): E, A, D, G, B, E
- Case Hardshell Case
